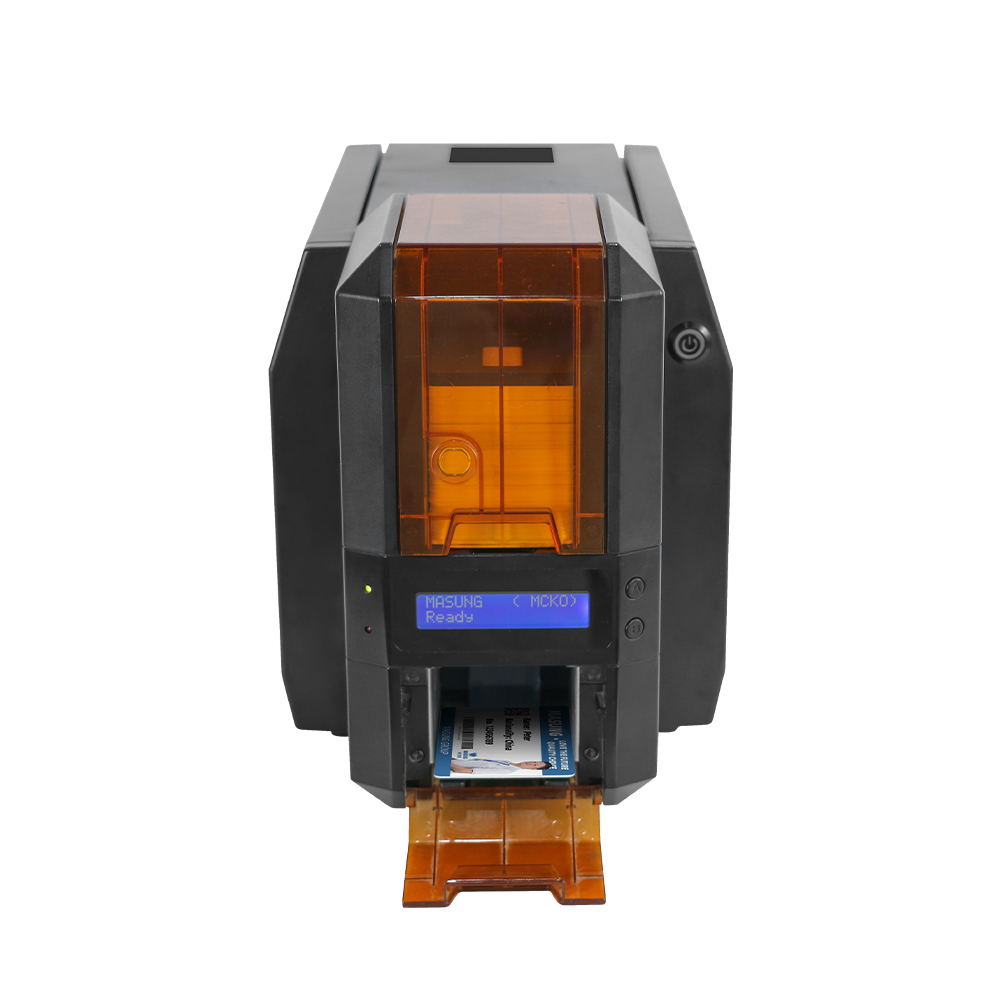

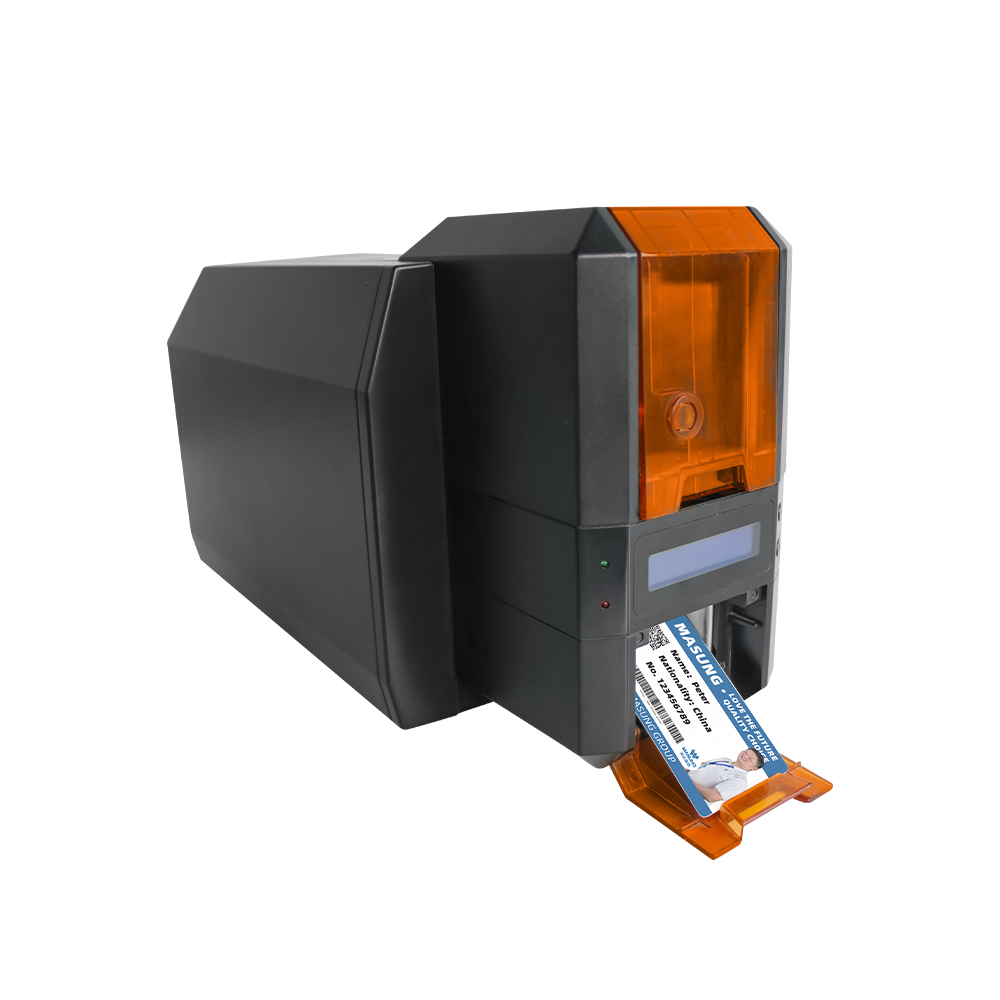

The MS-S22 Thermal Sublimation Color ID maker machine is a high-performance commercial solution for professional card printing. Utilizing advanced thermal sublimation technology, it delivers vibrant, high-resolution prints at 300 DPI, with speeds up to 4.8 s/monochrome card and 20 s/color card, ideal for corporate IDs, student cards, access badges, and more.
Featuring a 100-sheet automatic card hopper and adjustable thickness support (0.3-2.0 mm), the ID card printing machine can accommodate standard CR-80 cards (53.98×85.6 mm) and PVC/PVC composite materials. Besides, the ID card printer offers flexible connectivity via USB 2.0, optional Ethernet, and RS232 interfaces, paired with user-friendly software that mimics Microsoft Office design for easy layout customization, database integration, and background template selection.

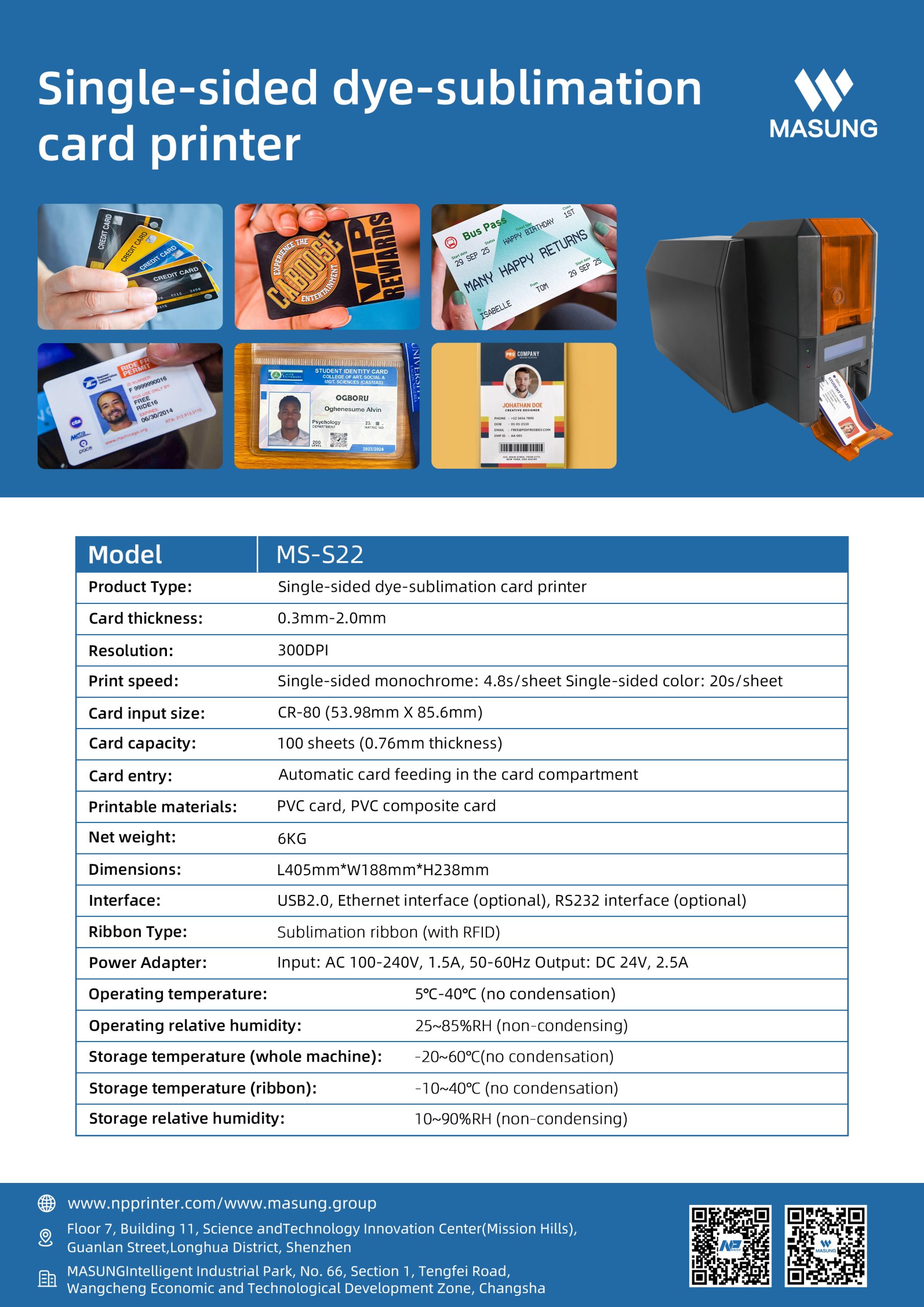

| Weight | 13.2 lbs |
|---|---|

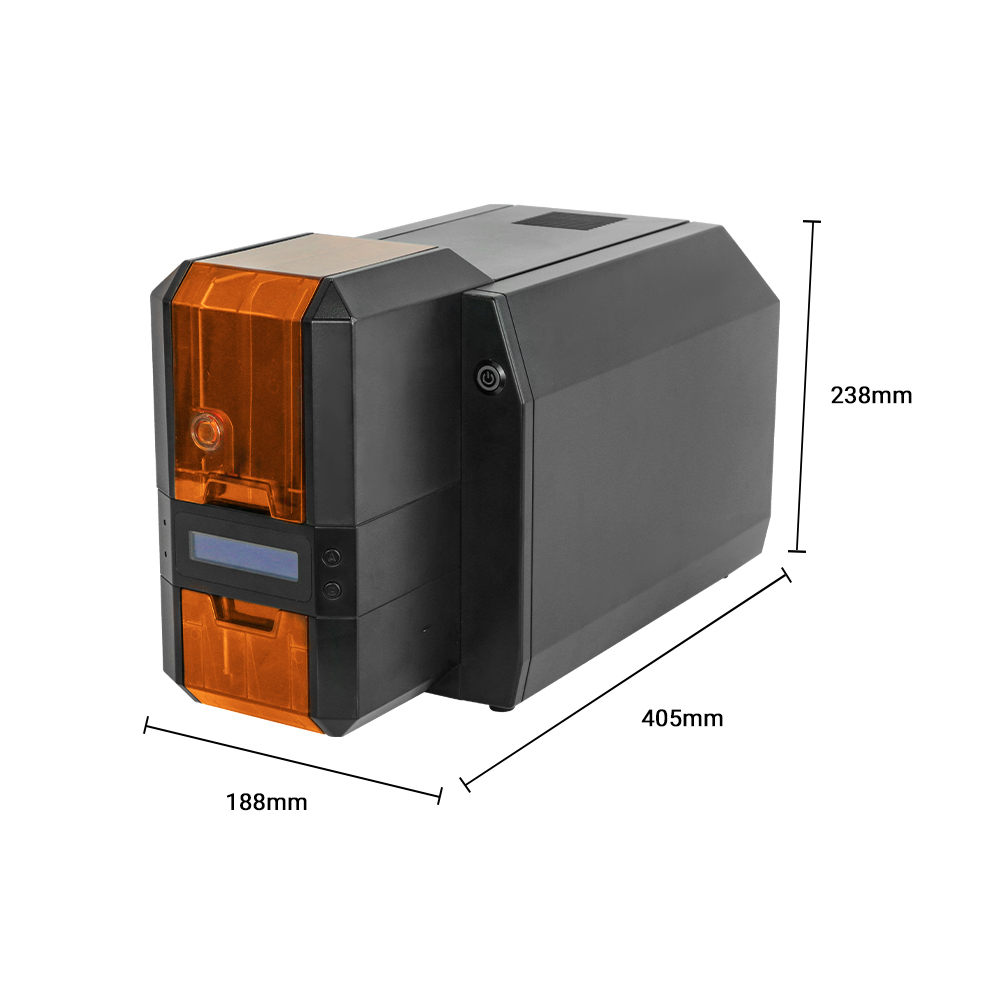

| Dimensions | 16 × 7.4 × 9.25 in |
| Printer speed for single-sided monochrome | 4.8 seconds per card |
| Printing speed for single-sided color | 20 seconds per card |
| Card Feed Method | Automatically |
| Card slot capacity | 100 cards (0.76mm thick) |
| Print Resolution | 300DPI |
| Admissible card size | CR-80(53.98mm X 85.6mm) |
| Card-feeding thickness | 0.3mm-2.0mm |
| Printable materials | PVC or PVC composite card |
| Ribbon Type | Specialized ribbon (with RFID) |
| Communication Interface | USB 2.0, Ethernet interface (optional), RS232 interface (optional) |
| Operating Temperature | 5℃ – 40℃ (no condensation) |
| Operating Relative Humidity | 25~85%RH (no condensation) |
| Storage Temperature | (Whole Machine) -20~60℃ (no condensation) |
| Storage Temperature (Ribbon) | -10~40℃ (no condensation) |
| Storage Relative Humidity | 10~90%RH (no condensation) |
