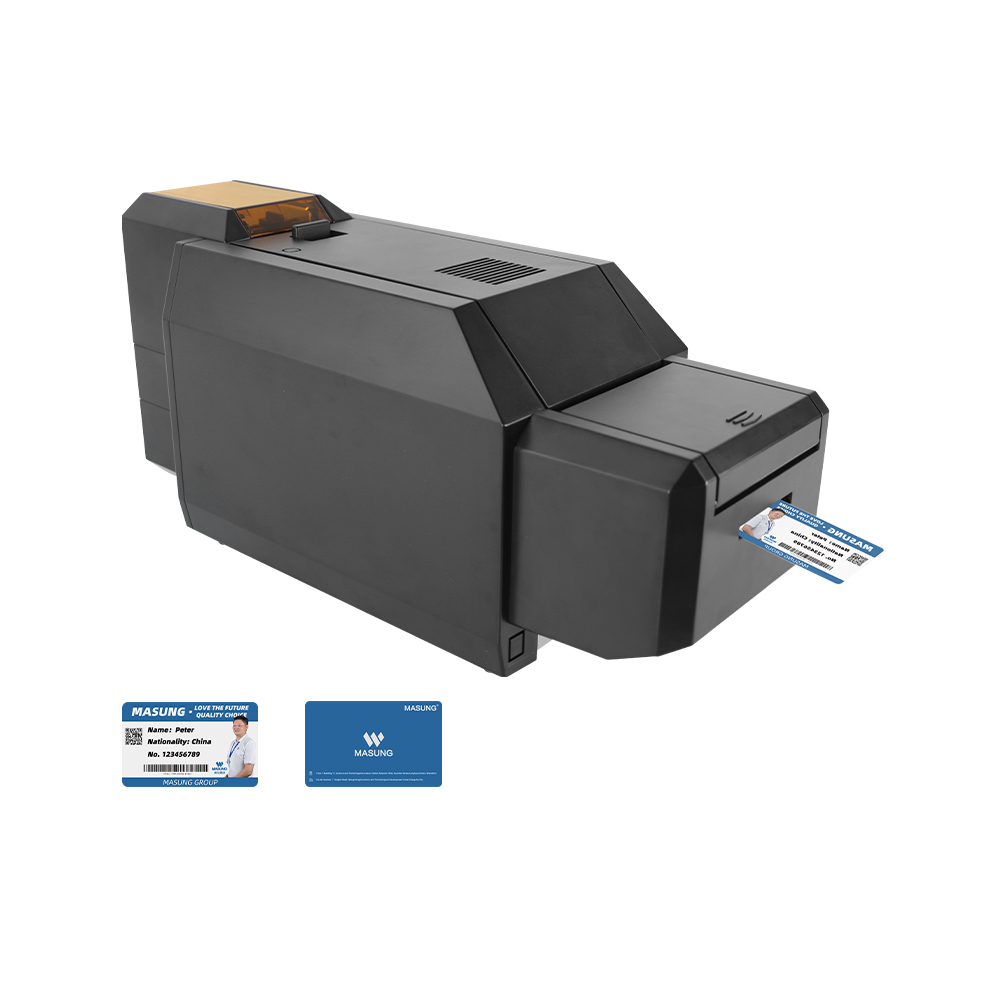

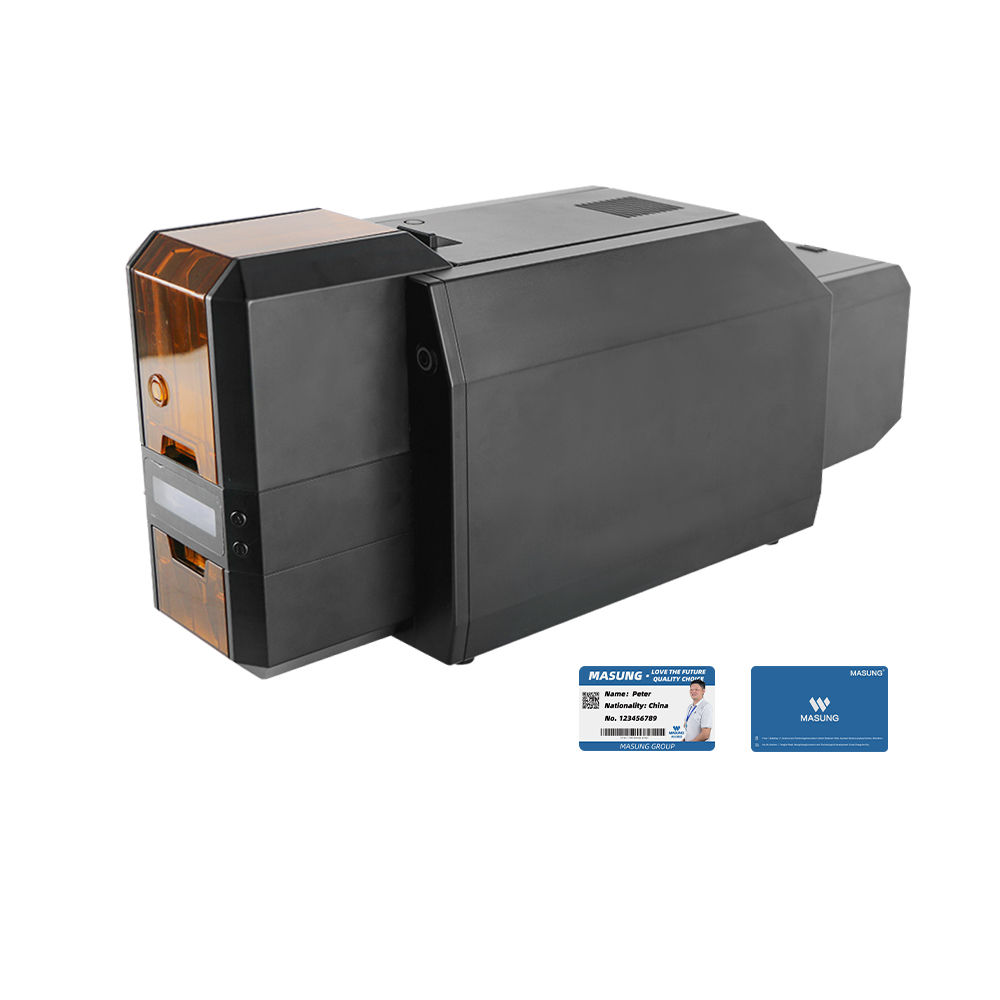

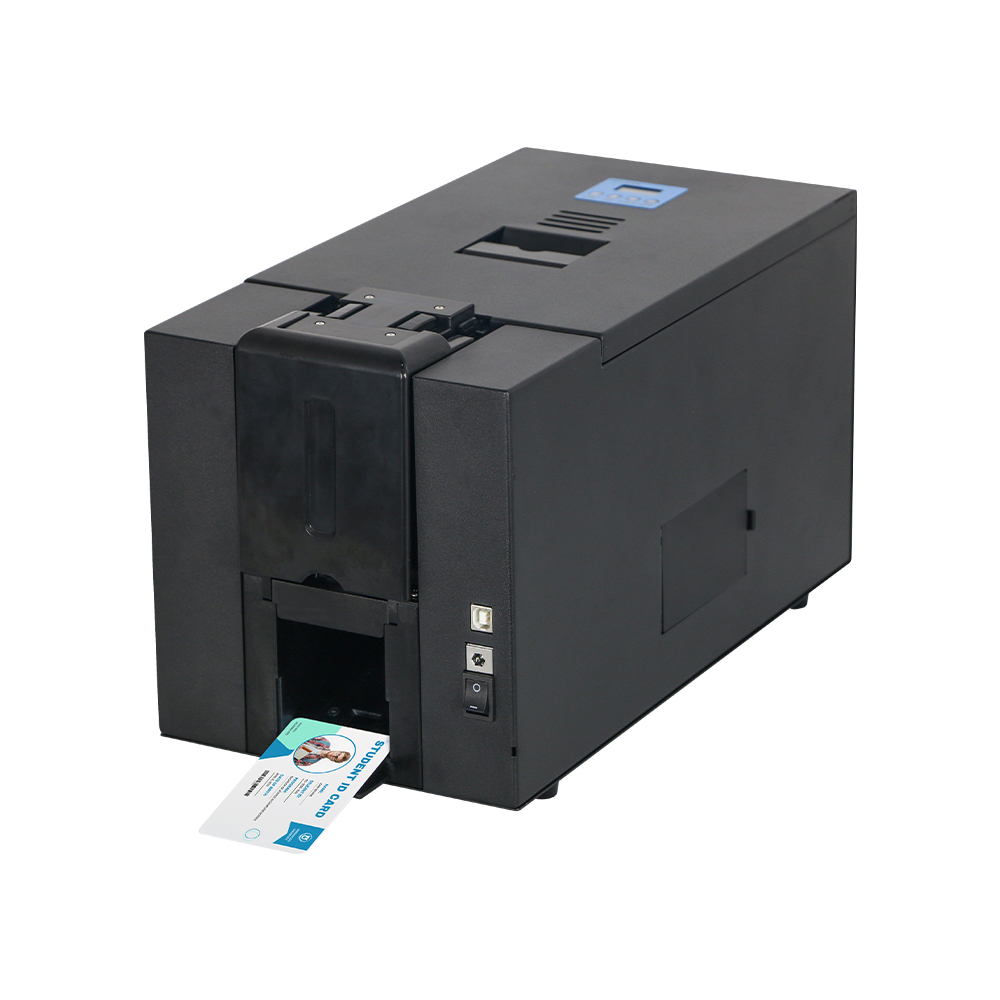

Masung MS-CH22K Double-Sided ID Card Printer, 300 DPI Thermal Sublimation Name Tag Printer for Event & Conference

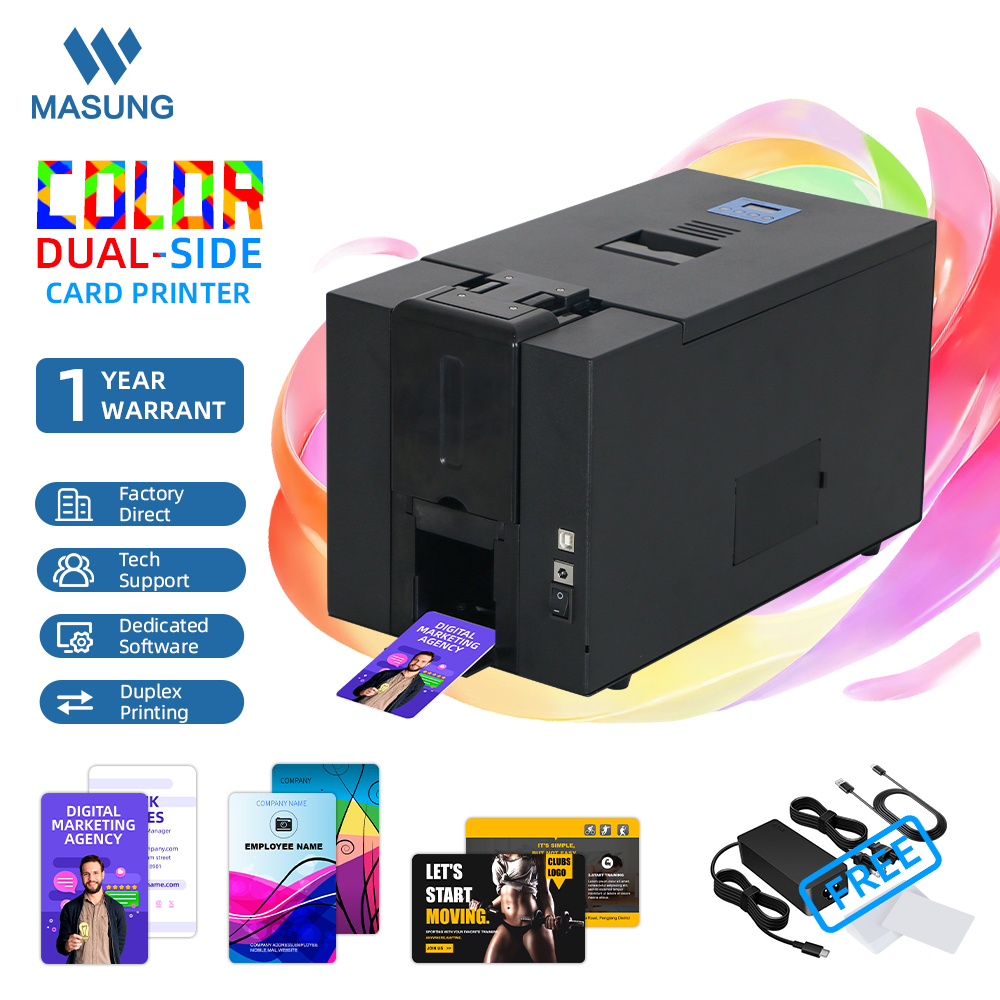

The MS-S22K is a professional-grade thermal sublimation printer designed for producing high-quality, double-sided identification cards. With a resolution of 300 DPI, it prints durable, smudge-resistant cards suitable for corporate environments, educational institutions, government use, conferences, and secure access control systems.

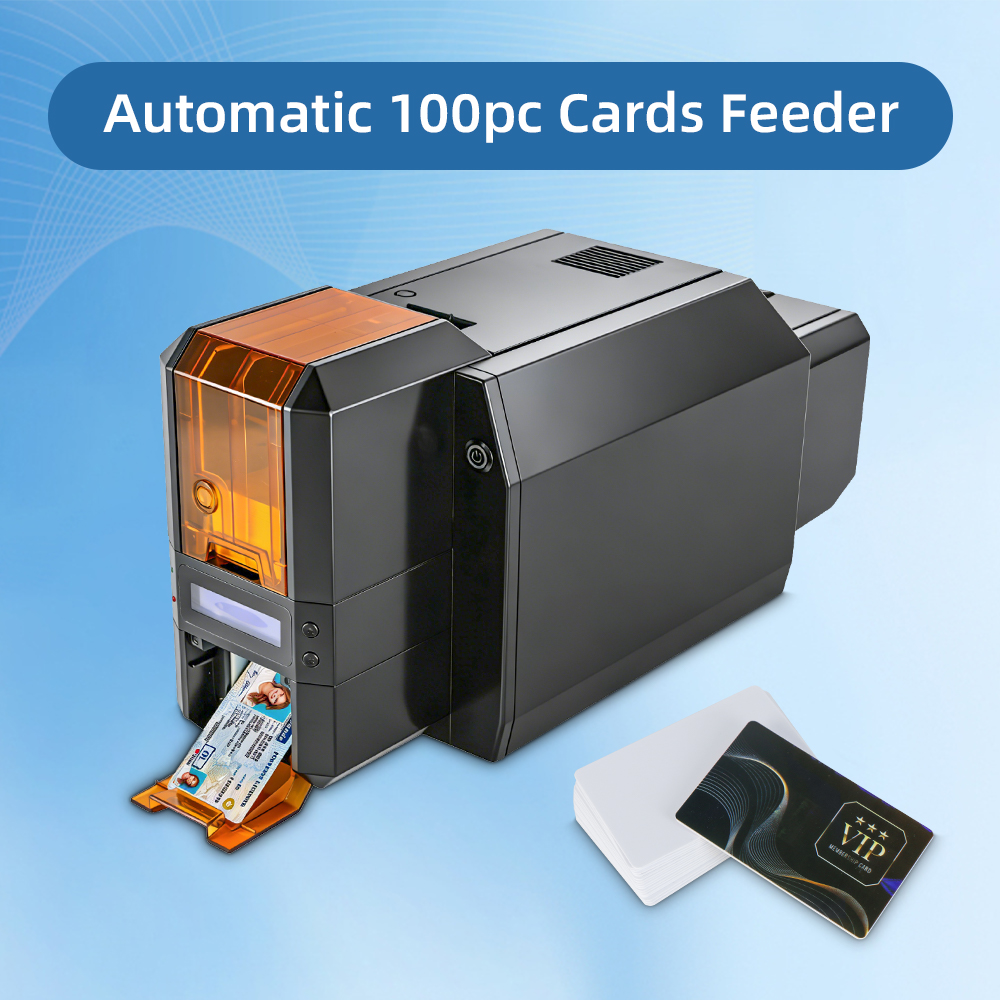

This ID card printer balances speed with consistent output, producing monochrome dual-sided cards in approximately 12 seconds and full-color cards in about 42 seconds. For streamlined workflow, it includes a 100-card auto-feeder and uses standard CR-80 PVC cards.

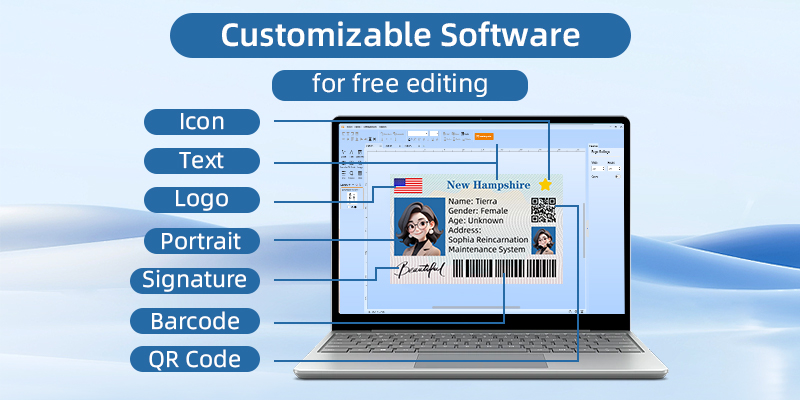

Connectivity options include USB and Ethernet for easy network integration, accompanied by intuitive design software. The ID card printing machine also supports RFID encoding, allowing for the creation of secure smart credentials tailored to modern security requirements.

Inquire to Request A Quotation or Service for This Product

Inquire

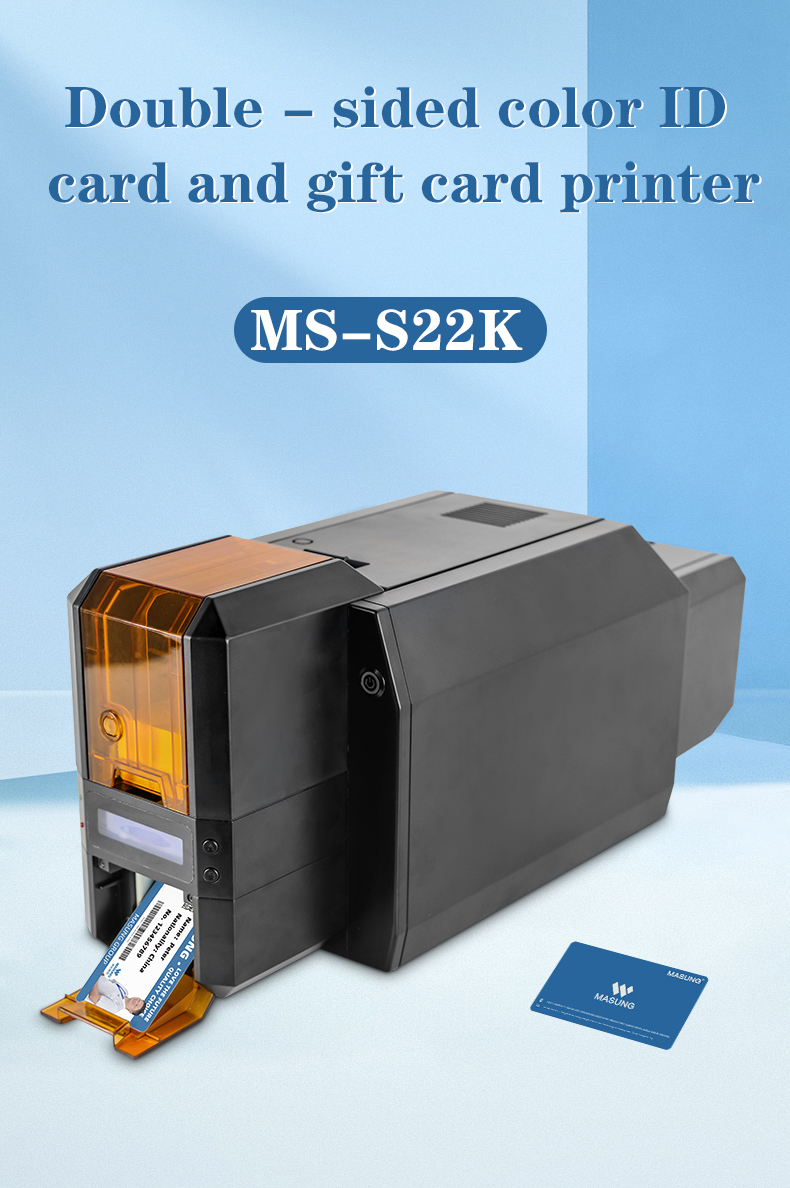

The MS-S22K is a professional-grade, double-sided ID card printer designed for secure and efficient credential production. It provides organizations with the capability to produce professional, full-color, or monochrome ID cards in-house.

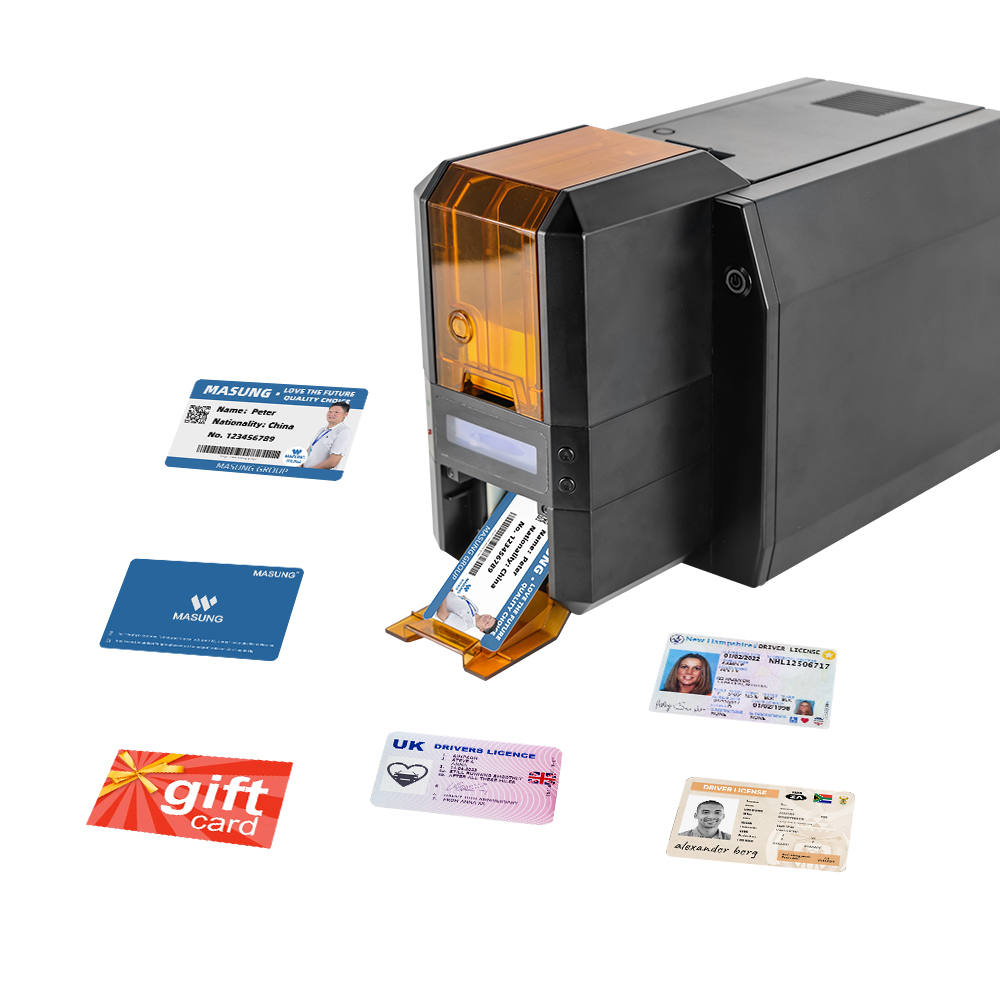

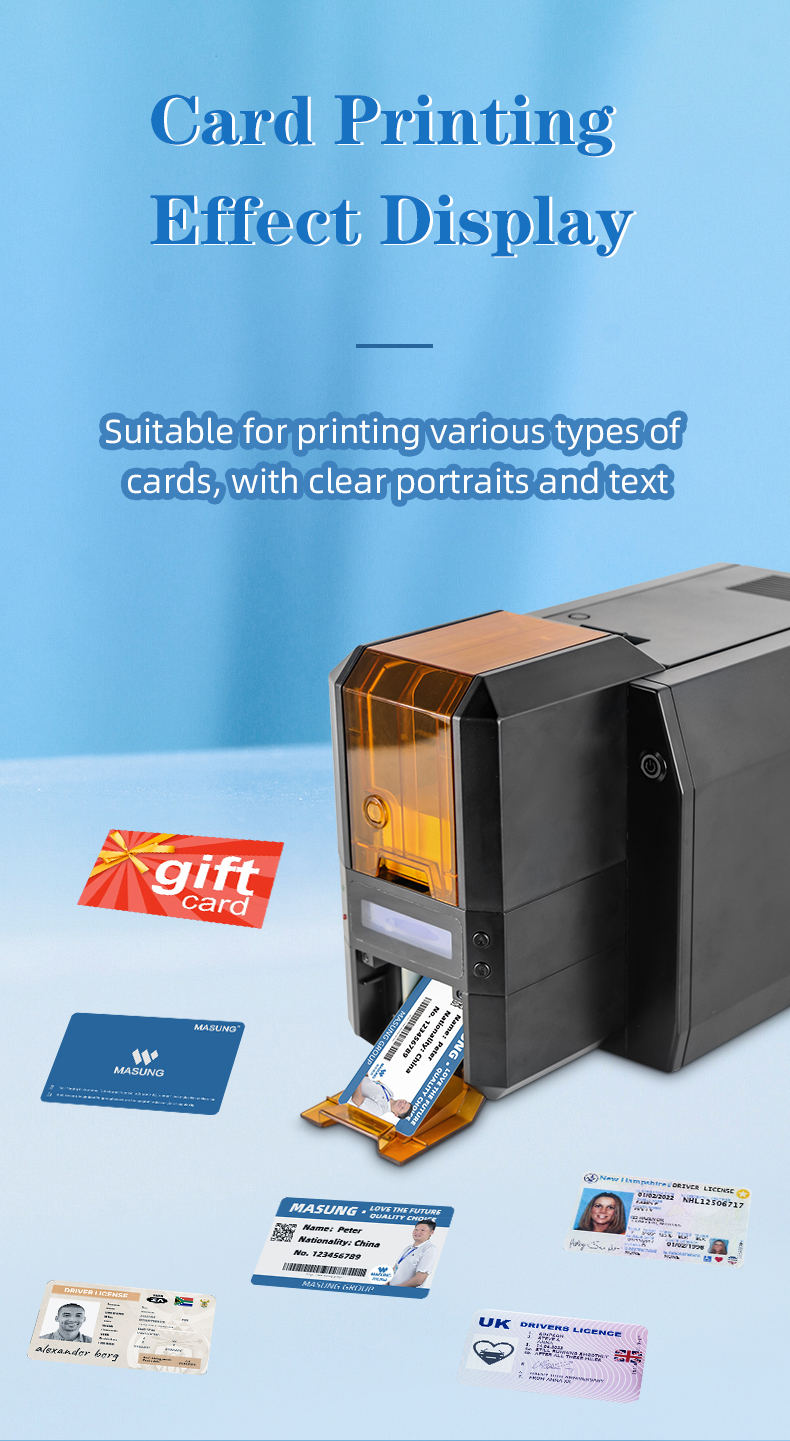

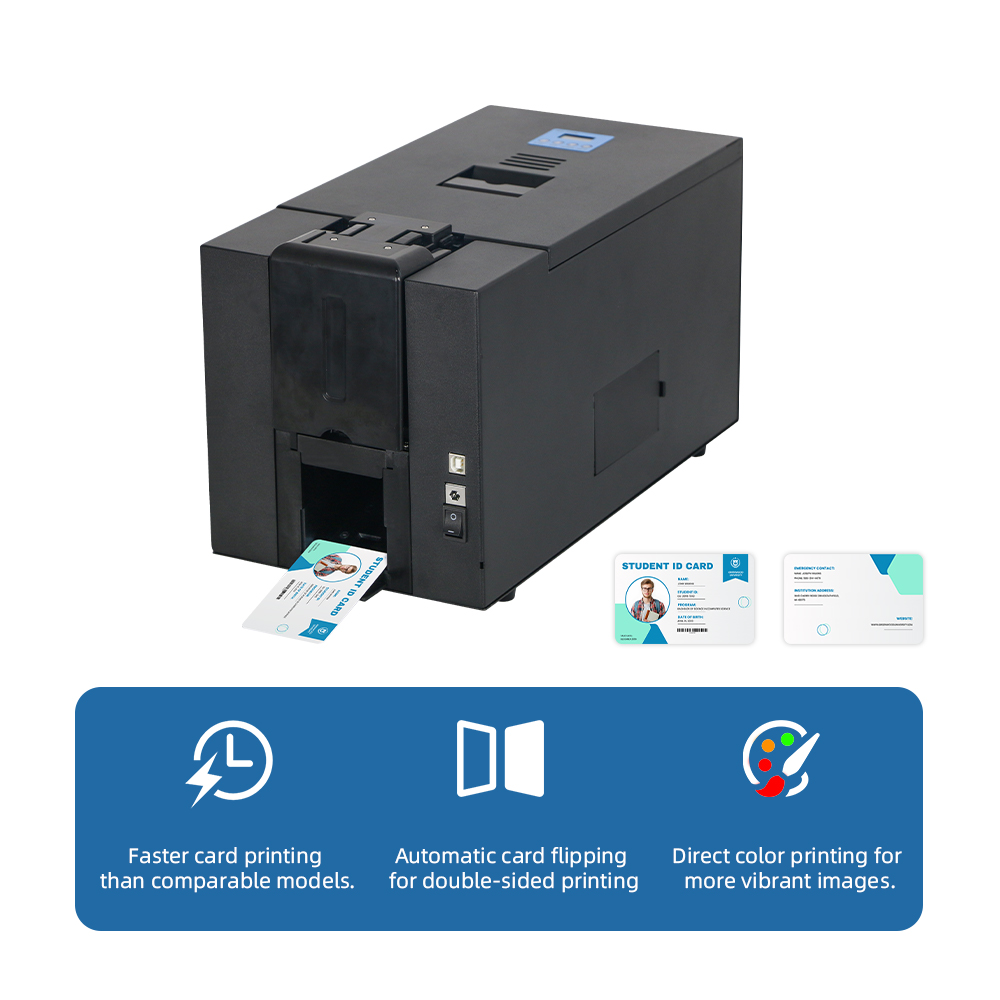

This double-sided PVC card printer delivers 300 DPI print quality on both sides of a card simultaneously, suitable for issuing employee badges, student IDs, and access credentials. As an all-in-one solution, it offers a reliable alternative to outsourced card services.

For high-volume needs, the MS-S22K double-sided ID printer includes a 100-card automatic feeder. It can produce a full-color, dual-sided card in approximately 42 seconds, making it effective as a name badge printer for events requiring rapid issuance.

Beyond standard printing, this name badge printer machine supports dedicated ribbons like YMCKO, metallic gold and silver, and single-color options. This allows for custom colors, security overlays, and detailed design elements.

Security and expandability are central to this 2-sided ID card printer. It is suited for corporate, government, educational, and healthcare environments that require more than a basic double-sided badge printer. Optional modules enable the encoding of contact and contactless smart chips and magnetic stripes. Physical security features, including Kensington lock holes and optional cover locks, help protect the card issuance process.

The MS-S22K functions both as a high-security credential issuer and a reliable name badge printer for events. It connects via USB, Ethernet, and RS232 for seamless network integration. By producing durable PVC cards in-house with this advanced double-sided ID card printer, organizations can establish a flexible and secure identity program.

pvc card printer double sided 2 sided id card printer double sided id printer id card printer machine double sided double sided badge printer double sided id card printing machine

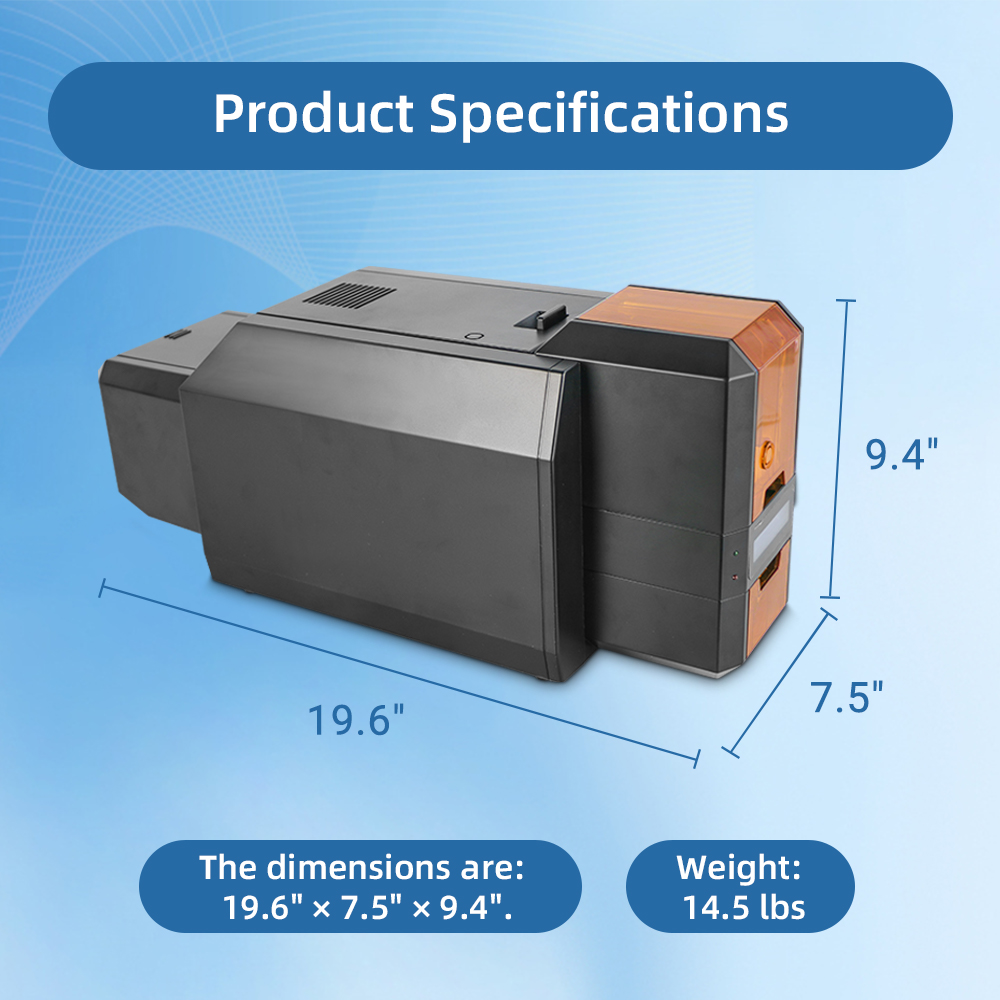

Weight 14.5 lbs
Dimensions 19.6 × 7.5 × 9.4 in
Model/SKU

MS-S22K

Printing Principle

Dye-sublimation ID Card Printer

Card Feeding Method

Automatic card feeding from card bin

Resolution

300 DPI

Dedicated Ribbons

YMCKO Full-size Color Ribbon: 240 sheets/roll
YMCKO Half-size Color Ribbon: 400 sheets/roll
YMCKOOK Full-size Color Ribbon: 200 sheets/roll
KO Black Ribbon: 500 sheets/roll
K Black Ribbon: 1000 sheets/roll
Gold Ribbon: 1000 sheets/roll
Silver Ribbon: 1000 sheets/roll
White Ribbon: 1000 sheets/roll
Red Ribbon: 1000 sheets/roll
Blue Ribbon: 1000 sheets/roll

Printing Speed

Double-sided Monochrome: 12 seconds/sheet
Double-sided Color: 42 seconds/sheet

Printable Size

CR-80 (53.98mm × 85.6mm)

Printable Thickness

mm-2.0 mm

Printable Card Material

PVC or PVC Composite Card

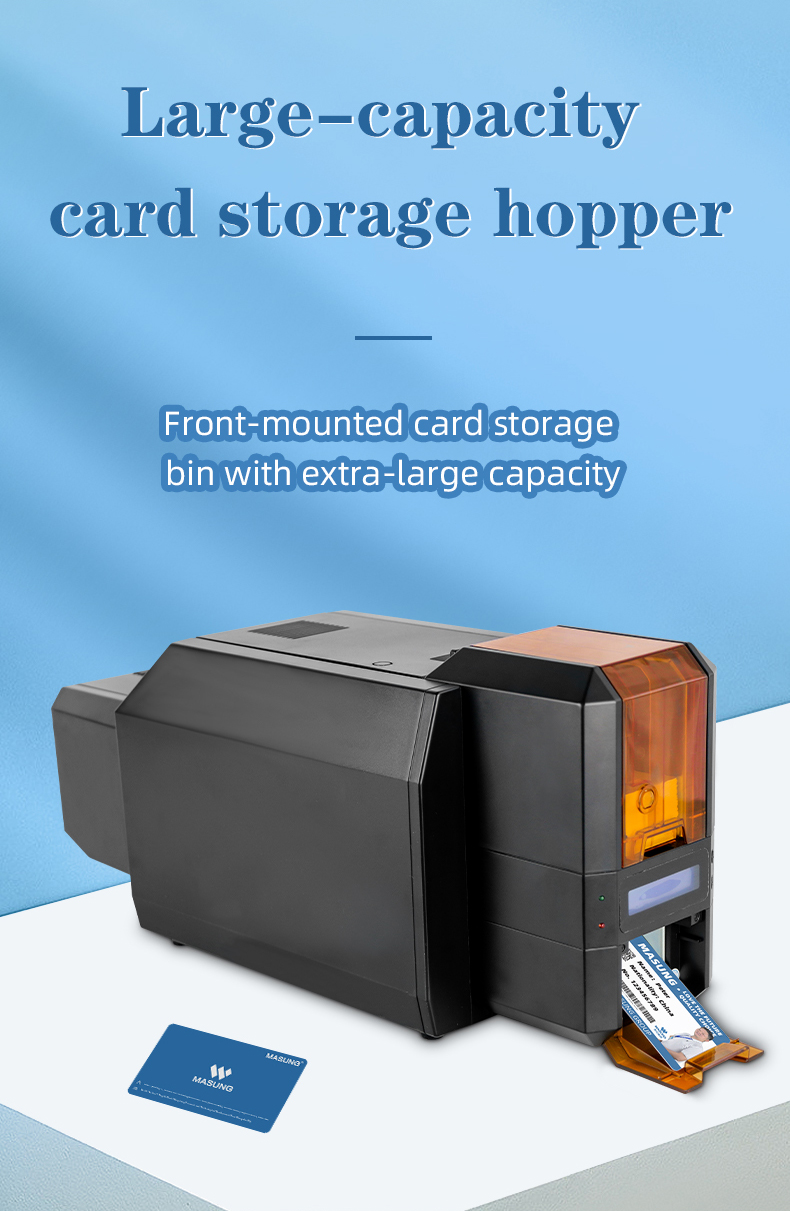

Card Input Slot Capacity

100 sheets (0.76 mm/30 mil thickness)

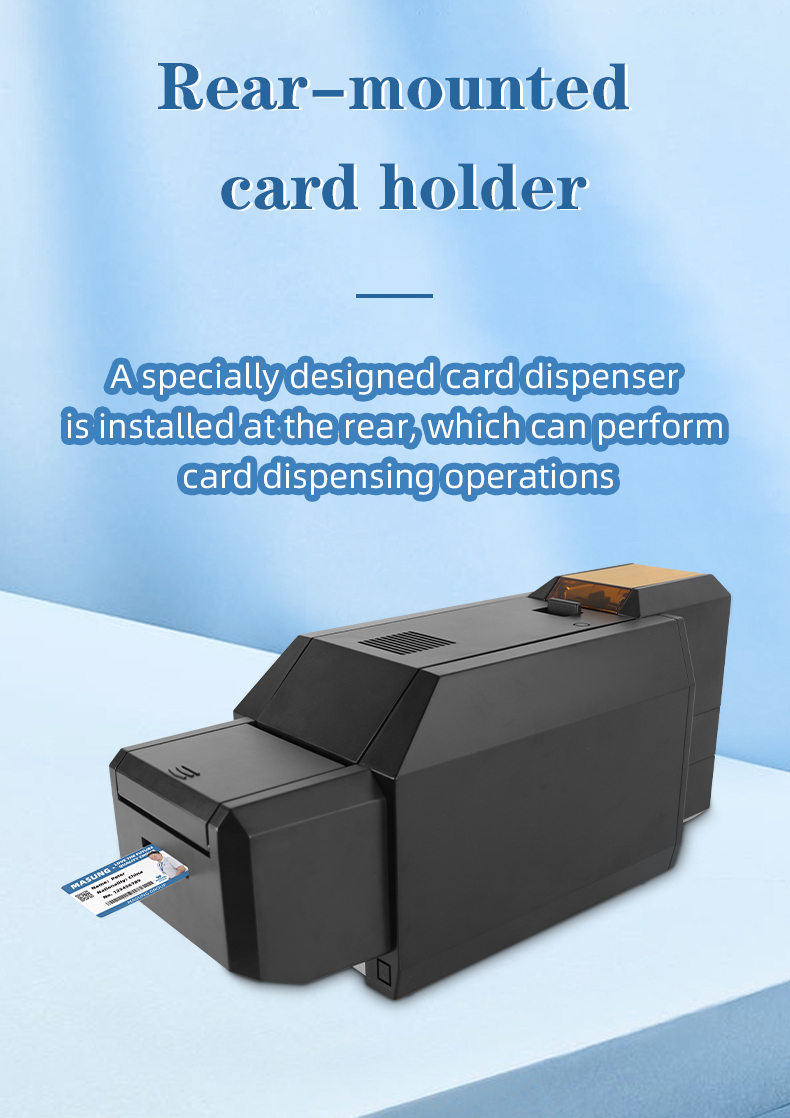

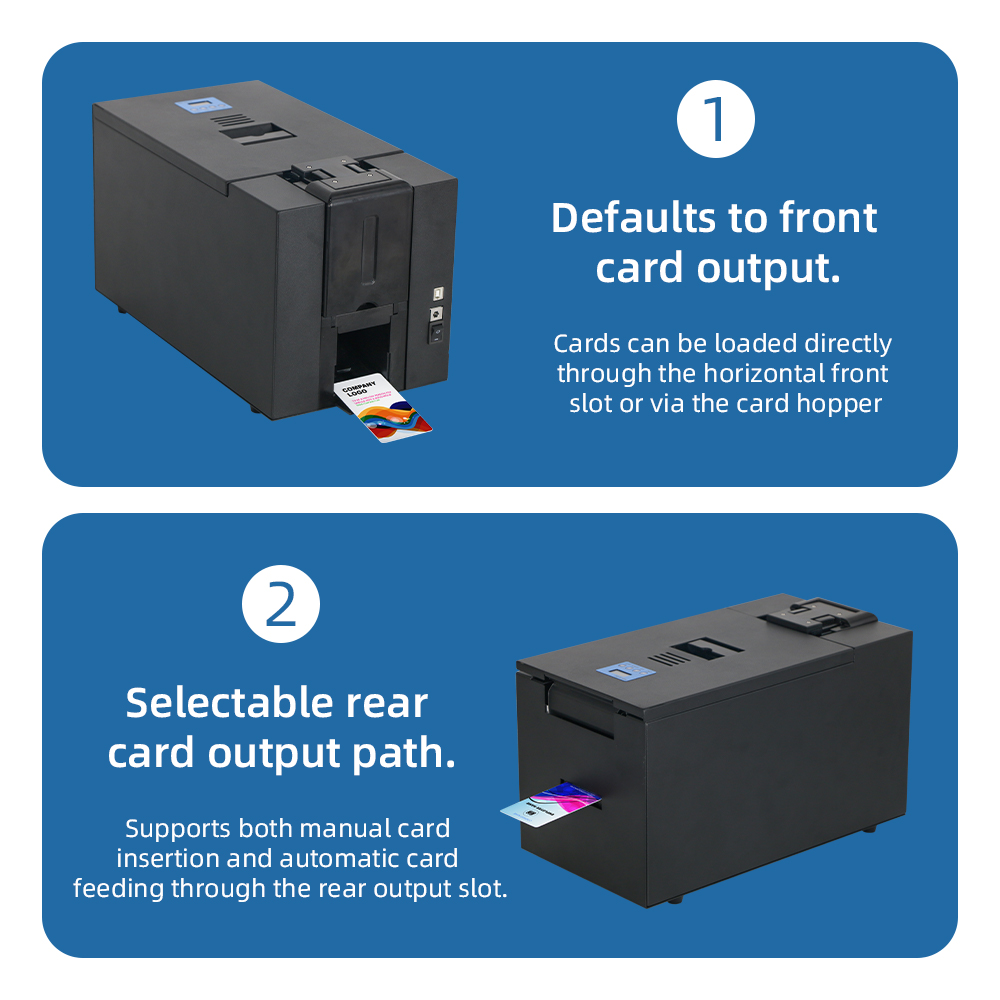

Card Output Slot Capacity

Front Output Slot: 50 sheets (0.76 mm/30 mil thickness)

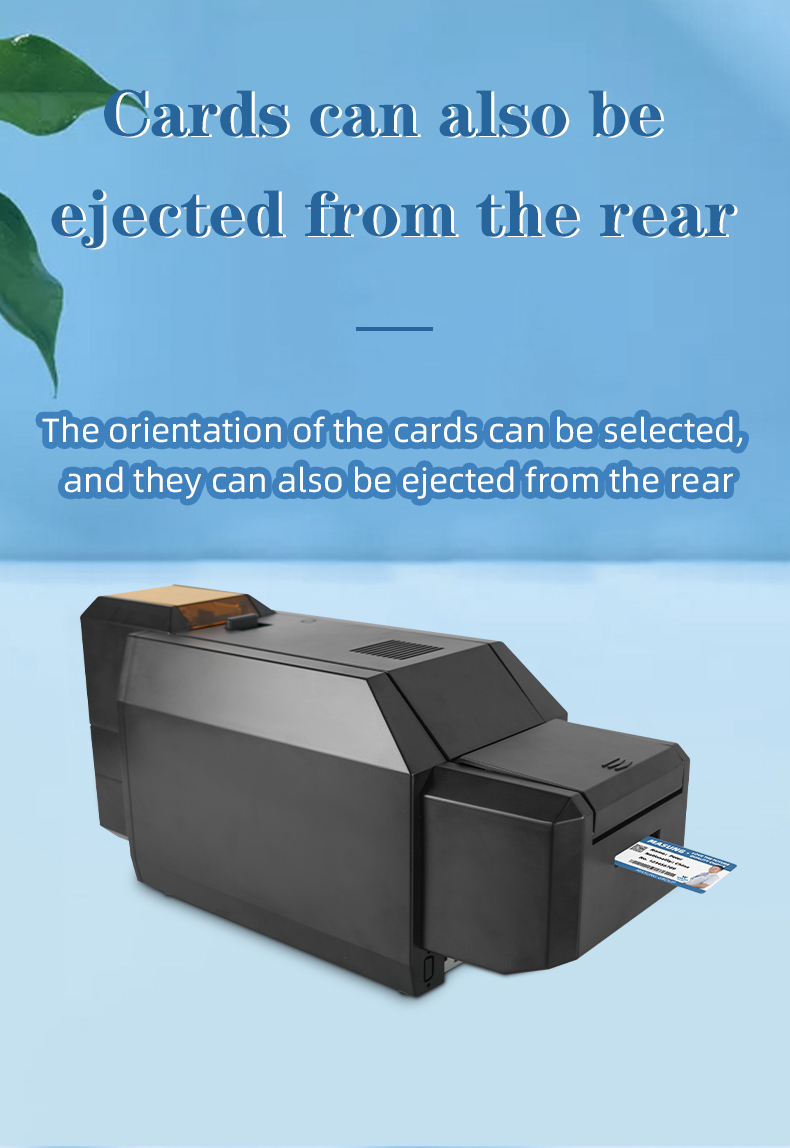

Rear Output Slot: 50 sheets (0.76 mm/30 mil thickness)

Memory

256MB

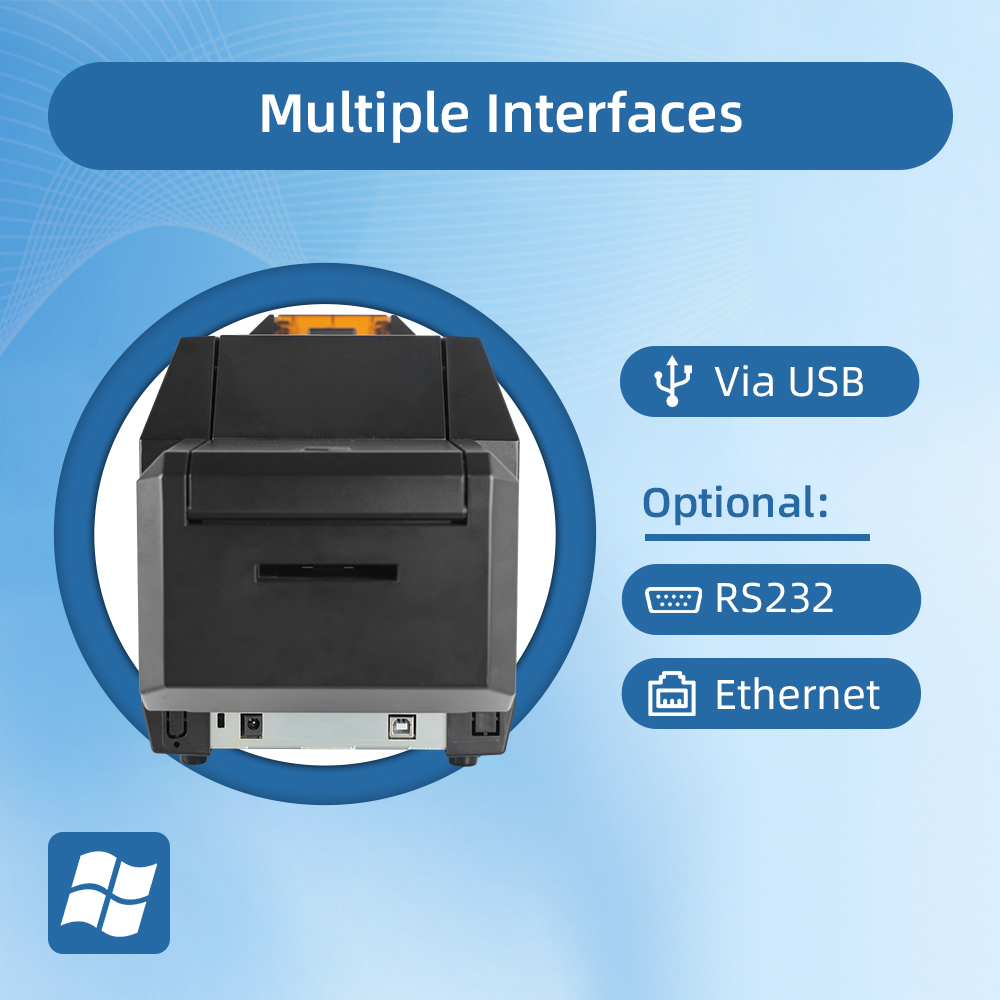

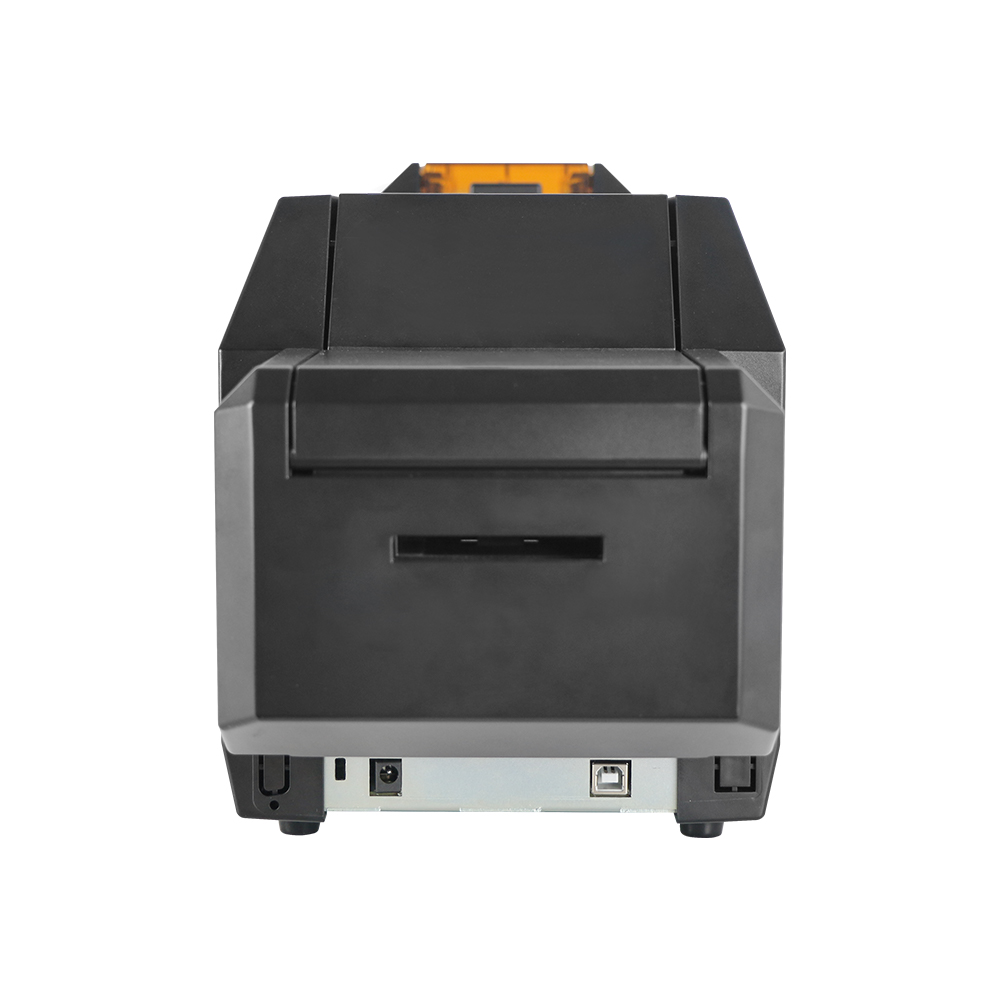

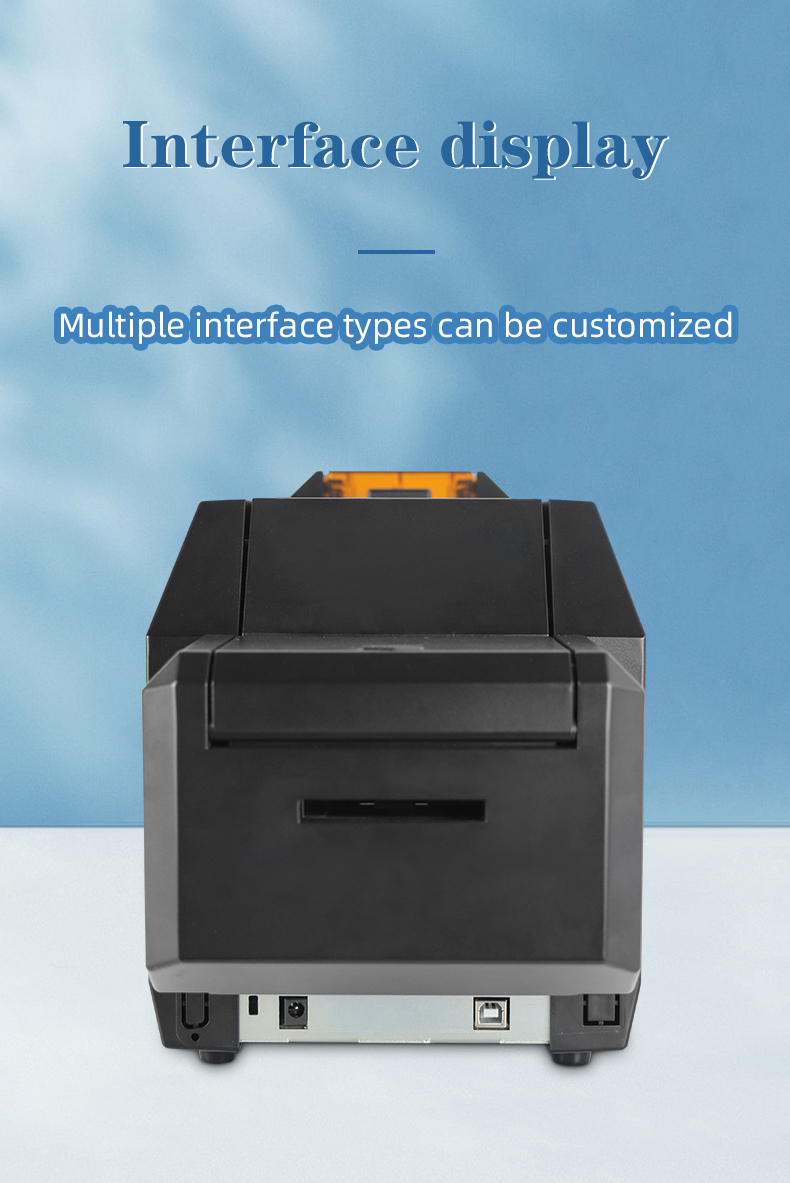

Communication Interface

USB 2.0 Interface
Ethernet Interface (Optional)
RS232 Interface (Optional)

Power Supply

24V/2.5A DC Power Adapter

Security System

Kensington Lock Hole
Card Input Slot Lock (Optional)
Card Input Slot Lock (Optional)

Supported Systems

XP, Vista, Win7 (32/64 bit), Win8 (32/64 bit), Win10 (32/64 bit)

Optional Modules

Contact IC Card Reader/Write Module
RFID Contactless Smart Card Reader/Write Module
MS Magnetic Stripe Card Reader/Write Module
High-Capacity Card Slot
Multiple Card Slots
